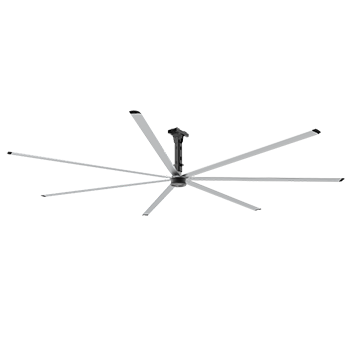

Different from most large industrial ceiling fans on the market that rely on rapid turning speeds to generate unsteady and uneven airflows, Powerful HVLS Fan series 10 large industrial ceiling fans wield outstanding motor control to generate even and gentle winds. In addition, the unique expanded air flow design of the series 10 allows for even better internal and external air circulation in large areas.
|
Diameter |
20 ft (6.1m) |
|
Weight* |
110.16 kg |
|
Speed |
60 RPM |
|
Power |
765 W |
|
Max Airflow |
234,859 CFM |
|
Noise |
<46 dB(A) |
|
Power source |
220-240 VAC |
|
Environment* |
Indoor/Outdoor |
*Weight: fan unit only, the controller, the mount and the extension tube are not included.
*Environment: This product is not suitable for salt air environments.
※The above specifications are test from SUNON Lab and the data will be affected by different environmental conditions.
Case Study：http://www.invni.com.tw/case/2
Different from most large industrial ceiling fans on the market that rely on rapid turning speeds to generate unsteady and uneven airflows, Powerful HVLS Fan series 10 large industrial ceiling fans wield outstanding motor control to generate even and gentle winds. In addition, the unique expanded air flow design of the series 10 allows for even better internal and external air circulation in large areas；It’s the best choice for air-circulation on the large factory, warehouse, agriculture.
More than 90% of motor efficiency, gearless direct drive motor , no need for regular lubrication maintenance.
Compared with the US EC Fan brand, it saves 32% of electricity.
By implementing aerodynamic diversion designs, the generated airflow is gentle and does not include flow-breaks. Even large spaces can be cooled down through comfortable wind.
factory, ranch, greenhouse, hangar, gymnasium, warehouse, hypermarket, supermarket, exhibition hall
To alleviate the extreme climate, our concern begins with our product design.
(*Power consumption benchmark: Compared with the well-known US brand based on its gearless direct drive products.)
'
Powerful HVLS Fan resemble the natural breeze, it will generate the massive and smooth airflow. It can replace the AC and make occupants feel the 5-8 degrees temperature difference. Combine with the AC system, it reduces the costs. In the winter, the reverse mode can be switched to push down the warm air on the roof/ceiling, which achieves the effect of adjusting the temperature.
